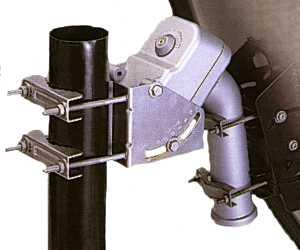

Sat Motor Geotrack

Motor für Satelliten-Antenne von Grössen bis zu 120cm Durchmesser

compatible with DiSEqC 1.2 receivers
adjustable hardware limit switches
indicating LED for easy trouble shooting
manual button for easy installation
for dish up to 1.2 m
compact and powerful

TECHNICAL SPECIFICATION
Protocol: DiSEqC 1.2
Compatible Receiver: DiSEqC 1.2 Receiver
Antenna Size: 120 cm Max.
Speed: 1.9° / sec (at 13V) ; 2.5° / sec (at 18V)
Azimuth Angle: 70° East ~ 70° West (140° Max.) Adjustable
Elevation Angle: 25-75°
Tube for Antenna: Ø 55 x 160 mm
Stand Size: Ø 35-Ø 65 mm
Input Voltage: 13 / 18Vdc
Output Voltage: 13 / 18Vdc (according to input)
Power Consumption: 50 mA (Standby) / 200mA (Normal) / 350mA (Max.)
Satellite Positions: 60 positions
Goto 0 Position Function: Yes (Goto O°)
Recalculation Function: Yes
Manual Button: Yes
Indicating LED: Yes ( 2 Colors )
Limit Protection:
1.Adjustable Hardware Limits
2.Programmable Software Limit
3. Current Limit
Positioning Sensor: High Resolution Hall Effect Sensor
Connector: F-Type
Weight (Mount): 3.1 Kg (Net) / 3.5 Kg (Gross)
Dimension (Mount): 345 x 168 x 110 rnm~ (Gross)

Ihr Preis inkl. 7.7% MwST.: CHF 139.90 jetzt nur CHF 117.50
mehr als 10 Stück ab Lager lieferbar
Stück in den Warenkorb legen
